STANDARD DRAWER SPECIFICATIONS

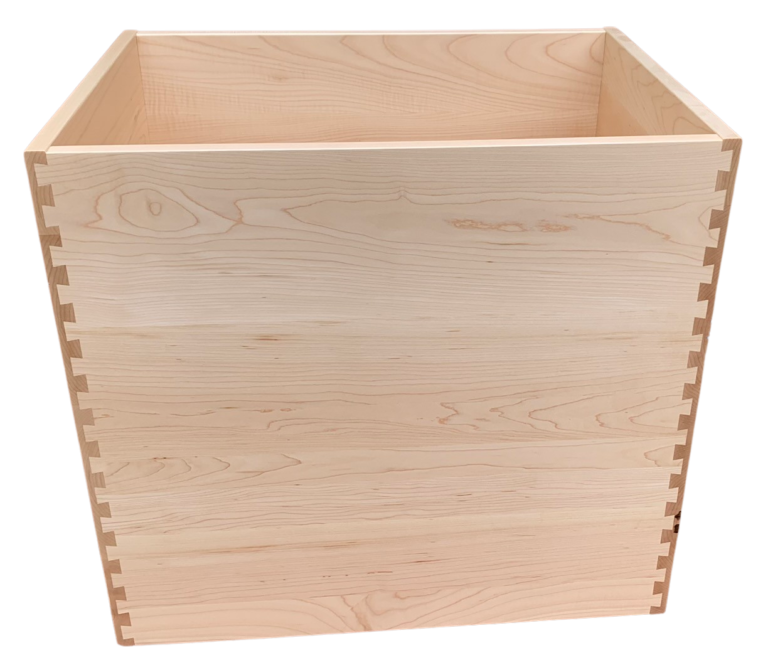

White hard maple dovetailed drawer

White Maple

All visible faces are white  (both sides of sides and inside of front & backs)

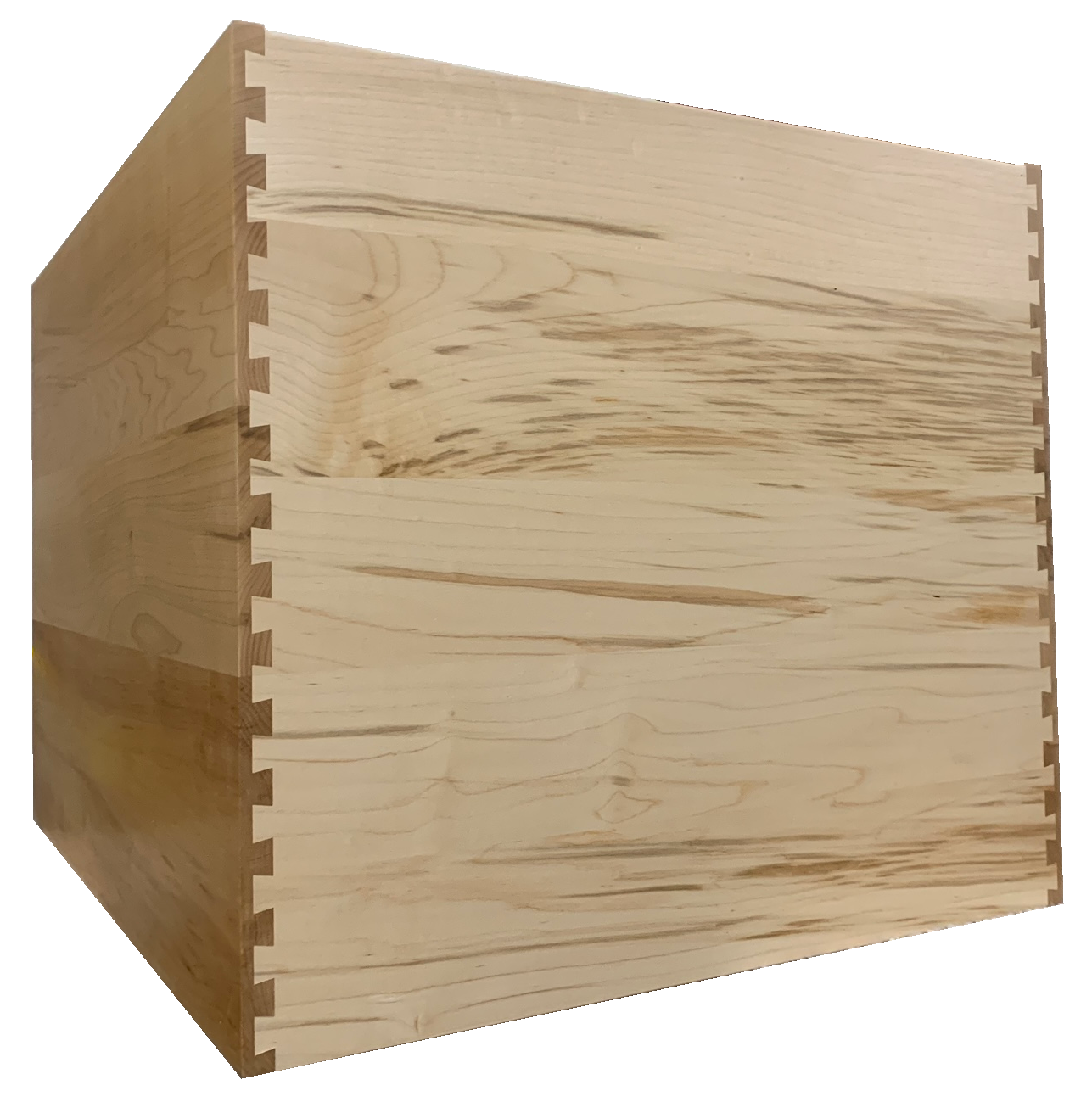

Economy maple dovetailed drawer

Economy Maple

Outside of sides are mainly white with some brown heartwood naturally blended in. Fronts & backs are not sorted for colour and may be totally brown heartwood.

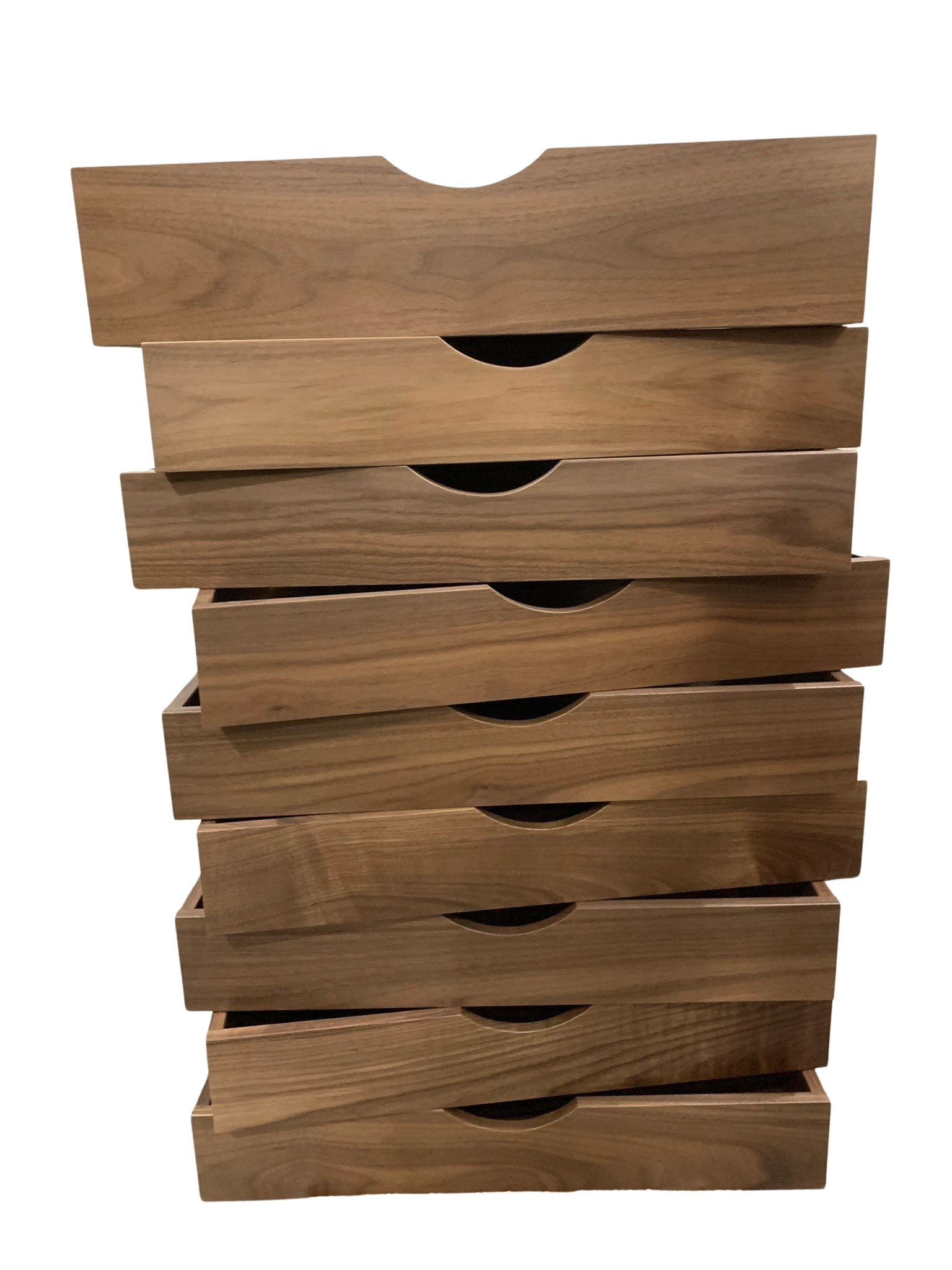

Walnut dovetailed drawers

Other Species

Other wood species are available upon request.

Standard Specifications

  • 5/8″ or 1/2″ thickness
  • Bottoms made from 1/2″ hard-maple plywood
  • 1/2″ bottom spacing
  • Sides set 2mm (5/64″) lower than fronts and backs
  • 1/16″ radius on top edges
  • Bottom edges also eased
  • CNC dovetailer can cut any size up to 505mm (19 7/8″) tall
  • Prepared for your hardware specifications
  • Finished with 35-degree sheen pre-catalyzed clear lacquer. 2 coats is standard, 3 coats (premium finish) is also available
  • Custom logo laser engraving available
Laser engraved logo on a dovetailed drawer part
Custom logo laser engraving available
Sides set 2mm (5/64") lower than fronts and backs
Sides set 2mm (5/64") lower than fronts and backs
Prepared for your hardware specifications
Prepared for your hardware specifications
CNC dovetailer can cut any size up to 505mm (19 7/8") tall
CNC dovetailer can cut any size up to 505mm (19 7/8") tall
